72V1500W electric bicycle kit, trike kits for motorcycles

Voltage : 72V

Design : Brushless

Wattage : > 400w

Motor Type : Brushless Non-gear Hub Motor

Motor : Brushless, Dongnan branded, supply by ourself

Max Speed : 70km/h

Rated Voltage : 72V

Rated Power : 1500W

Efficiency : 83%

Disc brake : Available

Hall sensor : optional

Magnet Size : 35mm

Color : Black

Battery : Li-ion Battery

Supply Ability : 3000 Set/Sets per Month

Packaging Details : 1set/carton

Port : Shanghai

MOQ : 1 Set/Sets

Price : $60.00 - $170.00 / Set

Place of Origin : 2232

Contact Now

Hot products

72V1500W electric bicycle kit, trike kits for motorcycles

Product Description

Motor power	1500W
Design	Brushless gearless dc
controller	26A controller
Throttle	Thumb/Half-Twist throttle
Brake	Disc brake / Brake sensor
waterproof	IP65
Dropout	Front :100mm Rear:135mm
Wheel size	20" 24" 26" 28" 29" 700C
Display	LCD / Colorful display Optional
Battery	48v 13ah hailong battery with 2a charger

Detailed Images

Rim sizes

1.95-inch wide road bike tire

Fat tire of 2.6 inch wide mountain bike

Fat tire of 4.0 inch wide snowy bicycle

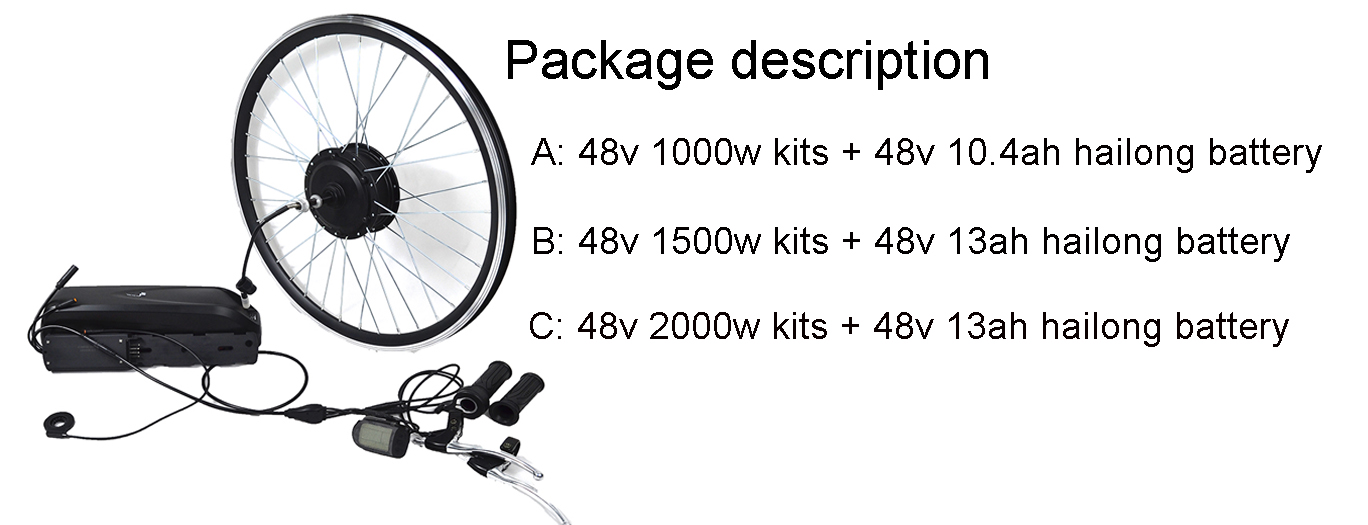

Battery

48v 13ah hailong battery with 2A charger

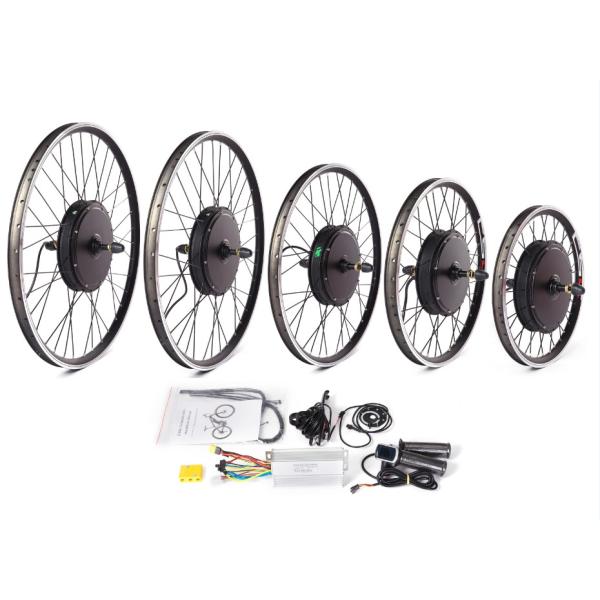

48v 1500w brushless Gearless Hub motor

1). Front :100mm Rear:135mm
2). Magnet height: 27mm*2.3
3). RPM: 420
4). 70NM

35A controller:

1). Inside with Mosfets good tube,square wave controller

2). 120 degree phrase position(120º)

Brake lever and Pedal-assistant sensor(PAS):

1). 8-12 magnet points available with good quality
2). Good response speed and sensive for pedal assistance

Thumb Throttle

Half-Twist Throttle

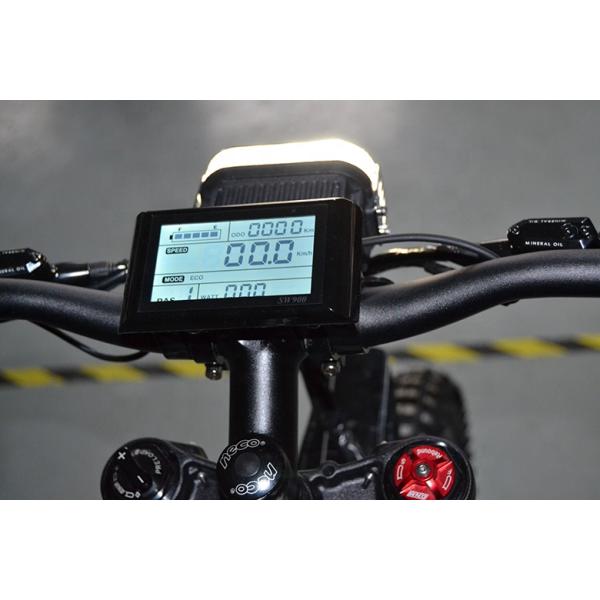

Display(LCD):

two types

1)sw900

2)colour dispaly UKC1

Optional parts

Waterproof cables

Casstte

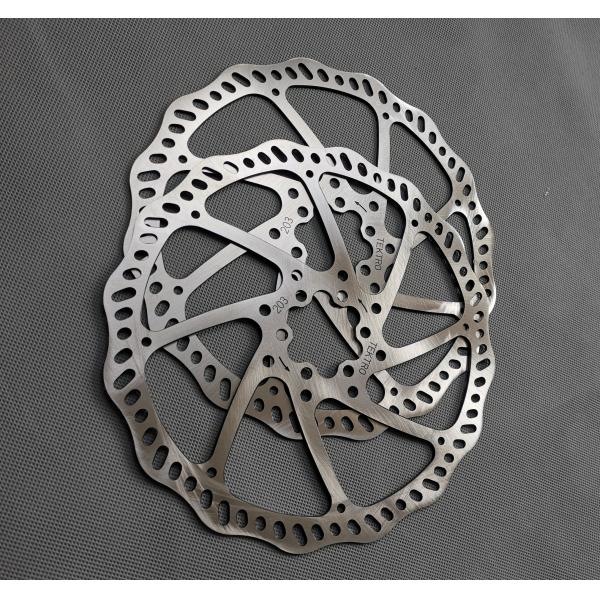

Disc brake

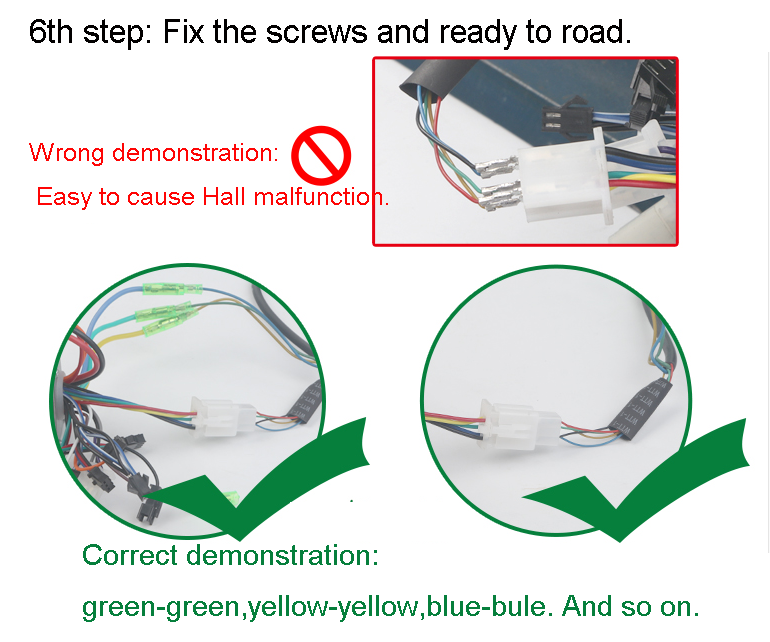

Installation Instructions

Packing&Shipping

Standard package for ebike kit

20 /24'' :55*55*23cm 26'': 60*60*23cm 700c /29'' :65*65*23cm

Company Introduction

Exhibition

FAQ

Q1. Can my bike be used with the kits?
A: Yes sure and on the market 95% bikes can be used with our kits!

Q2. Is the kits difficult to install ?How to install?
A:Not difficult but need you like hand-work. Only install our motor kits and fix well the brake lever and controller.Connect the cables is ok. We will offer you inslation viedo and will service on you on line.

Q3.Need I offer what data for bikes?
A:It is better you can send me your bike photo,tire type numbers: such as 26'*1.95.

Q4. Install front wheel or rear wheel?

A:Both ok. Front wheel is flexible and real wheel is stable.But rear wheel is a little diffcult than front wheel.
